| View previous topic :: View next topic |
| Author |
Message |
Razi
Expert Cheater
 Reputation: 1
Joined: 17 Jan 2018
Posts: 205
|
 Posted: Fri Oct 27, 2023 5:52 am Post subject: ListView with pictures? |
 |
|
Good day. How to add a picture to the listview? A listview has already been created on the form with two columns, Listview ViewStyle:vsReport. Pictures are in gif format. Pictures are added via the table -> add file. I want to do it like in the screenshot below:
What is the difference between the OnCustomDrawItem and OnDrawItem events?
| Description: |
|
| Filesize: |
13.48 KB |
| Viewed: |
4269 Time(s) |
|
|
|
| Back to top |
|
 |
Dark Byte
Site Admin
 Reputation: 470
Joined: 09 May 2003
Posts: 25807
Location: The netherlands
|
| Posted: Fri Oct 27, 2023 10:19 am Post subject: |
|
|
to start, convert the images to icons or png, or bmp. I don't think gif is supported
load the images from the tablefiles. Imageobject.loadFromStream(tablefile.stream)
then if they aren't bmp create in memory bitmaps (createBitmap) and copy the images from the original image to the bitmap (using canvas copyRect or draw)
(resize them to 32x32)
create an imagelist with createImageList and add the bitmaps to it (imagelistobject.add(bitmap) )
in the listview set the property SmallImages to the imagelist
Now for each listitem in the list, you can set the ImageIndex property to the index the image is in the imagelist
and there you have it, the images should show up as lonf as the listitem has a proper imageindex set
--
Or, if using an imagelist isn't something you wish to use, then you can use OnCustomDrawItem (OnDrawItem isn't supported)
You still need to load the images from the tablefiles but you can store them internally as something else than a bitmap (though still recommended for performance)
and then in the OnCustomDrawItem draw using sender.Canvas and the listitem's displayRect rectangle info to draw an image and the text of the listitem
_________________
Do not ask me about online cheats. I don't know any and wont help finding them.
Like my help? Join me on Patreon so i can keep helping |
|
| Back to top |
|
|
Razi
Expert Cheater
Reputation: 1
Joined: 17 Jan 2018
Posts: 205
|
| Posted: Sat Oct 28, 2023 8:07 am Post subject: |
|
|
Here is the code, it displays the gif images, but it does not display the text. How to display text with OnCustomDrawItem?
| Code: |
local materiacolortbl = { 'magic.gif', 'support.gif',
'command.gif', 'independent.gif', 'summon.gif', 'allmateria.gif' }
local inventoryrefr = {UDF1.CEListView1, UDF1.CEButton1}
local materialisttbl = {
[0x00] = 'MP Plus'
,[0x01] = 'HP Plus'
,[0x02] = 'Speed Plus'
,[0x03] = 'Magic Plus'
,[0x04] = 'Luck Plus'
,[0x05] = 'EXP Plus'
-- ... 91 names
,[0x5A] = 'Master Summon'
,[0xFF] = 'NONE'
}
local items = inventoryrefr[1].Items
items.Clear()
for x = 0, 199 do
local offset = basaddr + 0x005E8D4C+x*4 --basaddr=0x400000
local valuemat = readBytes(offset)
local item = items.Add()
item.Caption = materialisttbl[valuemat]
item.SubItems.text = readInteger(offset+1) & 0xFFFFFF
end
inventoryrefr[1].ItemIndex = 0
local function button1onclick()
local addr = basaddr + 0x005E8D4C
for x = 0, 199 do
local offset = addr+x*4
local valuemat = readBytes(offset)
local matname = materialisttbl[valuemat]
local item = inventoryrefr[1].Items[x]
item.Caption = matname
local matap = readInteger(offset+1) & 0xFFFFFF
local subit = item.SubItems
subit.text = matap
end
end
inventoryrefr[2].OnClick = button1onclick --UDF1.CEButton1.OnClick-update data
if imgList then imgList.Destroy() end
imgList = createImageList()
imgList.ImageIndex = 0
imgList.Height=14
imgList.Width=14
--local ilist={}
for i=1, 6 do
local pic = materiacolortbl[i]
local picSrc = createPicture()
picSrc.loadFromStream(findTableFile(pic).Stream)
local bmpPic = picSrc.getBitmap()
bmpPic.PixelFormat = 'pf8bit'
imgList.add(bmpPic)
--ilist[i]=bmpPic --picSrc
bmpPic.Destroy()
picSrc.Destroy()
end
--inventoryrefr[1].StateImages = imgList --StateIndex
--inventoryrefr[1].SmallImages = imgList --set the property in the listview
--inventoryrefr[1].Items[1].ImageIndex = 1 --displays image in ListView
--inventoryrefr[1].Items[2].ImageIndex = 0 --displays image in ListView
inventoryrefr[1].OnCustomDrawItem = function(sender, ListItem, state)
local rect1=ListItem.displayRect(0)
--sender.Canvas.fillRect(rect1.Left,rect1.Top,rect1.Right,rect1.Bottom)
sender.Canvas.textOut(21, 1, sender.Items[ListItem.Index]) --displays text in place of the image
imgList.draw(sender.Canvas, rect1.Left + 1, rect1.Top + 1, 3)
return true
end
|
| Dark Byte wrote: | Or, if using an imagelist isn't something you wish to use, then you can use OnCustomDrawItem (OnDrawItem isn't supported)
You still need to load the images from the tablefiles but you can store them internally as something else than a bitmap (though still recommended for performance)
and then in the OnCustomDrawItem draw using sender.Canvas and the listitem's displayRect rectangle info to draw an image and the text of the listitem |
How to display pictures without creating Imagelist?
|
|
| Back to top |
|
|
Dark Byte
Site Admin
Reputation: 470
Joined: 09 May 2003
Posts: 25807
Location: The netherlands
|
| Posted: Sat Oct 28, 2023 5:26 pm Post subject: |
|
|
if you use imagelist you don't use OnCustomDrawItem
| Quote: |
How to display pictures without creating Imagelist?
|
use OnCustomDrawItem and draw the picture in that event handler (and the text as well)
_________________
Do not ask me about online cheats. I don't know any and wont help finding them.
Like my help? Join me on Patreon so i can keep helping |
|
| Back to top |
|
|
Razi
Expert Cheater
Reputation: 1
Joined: 17 Jan 2018
Posts: 205
|
| Posted: Sun Oct 29, 2023 6:39 am Post subject: |
|
|
| Dark Byte wrote: | | use OnCustomDrawItem and draw the picture in that event handler (and the text as well) |
Now the pictures are displayed, but the text is not displayed, screenshot below: without return true. There is something wrong with this line: | Code: | | sender.Canvas.textOut(21, 1, sender.Items[ListItem.Index]) |
full code:
| Code: | local materiacolortbl = { 'magic.gif', 'support.gif',
'command.gif', 'independent.gif', 'summon.gif', 'allmateria.gif' }
local inventoryrefr = {UDF1.CEListView1, UDF1.CEButton1}
local ilist={}
for i=1, 6 do
local pic = materiacolortbl[i]
local picSrc = createPicture()
picSrc.loadFromStream(findTableFile(pic).Stream)
local bmpPic = picSrc.getBitmap()
bmpPic.PixelFormat = 'pf8bit'
ilist[i]=bmpPic --picSrc
--bmpPic.Destroy()
--picSrc.Destroy()
end
inventoryrefr[1].OnCustomDrawItem = function(sender, ListItem, state, DefaultDraw)
local rect1=ListItem.displayRect(0)
sender.Canvas.textOut(21, 1, sender.Items[ListItem.Index])
sender.Canvas.draw(rect1.Left + 1, rect1.Top + 1, ilist[1])
--return true --if return true then the text is displayed, but pictures are not displayed correctly
end |
if "return true" in OnCustomDrawItem, then the text is displayed, but pictures are not displayed correctly, screenshot below: with return true.
Need an example of how to properly display text in OnCustomDrawItem in Listview.
| Description: |
|
| Filesize: |
2.71 KB |
| Viewed: |
4051 Time(s) |
|
Last edited by Razi on Thu Nov 16, 2023 10:41 am; edited 3 times in total |
|
| Back to top |
|
|
Dark Byte
Site Admin
Reputation: 470
Joined: 09 May 2003
Posts: 25807
Location: The netherlands
|
| Posted: Sun Oct 29, 2023 11:32 am Post subject: |
|
|
get displayRect from the listitem and then use that for textOut (or textRect)
top is y, left is x
and increase x by the size of the picture
_________________
Do not ask me about online cheats. I don't know any and wont help finding them.
Like my help? Join me on Patreon so i can keep helping |
|
| Back to top |
|
|
Razi
Expert Cheater
Reputation: 1
Joined: 17 Jan 2018
Posts: 205
|
| Posted: Mon Oct 30, 2023 2:30 am Post subject: |
|
|
| Dark Byte wrote: | | get displayRect from the listitem and then use that for textOut (or textRect) |
It's already working. The problem was in the: sender.Items[ListItem.Index], there is no text in it.
Made it to work like this: (on the 32 bit Cheat Engine)
| Code: |
inventoryrefr[1].OnCustomDrawItem = function(sender, ListItem, state, DefaultDraw)
local rect1=ListItem.displayRect(0)
sender.Canvas.textOut(rect1.Left + 21, rect1.Top + 1, ListItem.Caption)
sender.Canvas.textOut(rect1.Left + 121, rect1.Top + 1, ListItem.SubItems.text)
sender.Canvas.draw(rect1.Left + 1, rect1.Top + 1, ilist[1])
end
|
Everything looks great. But now the row is not highlighted in blue when selected, as it should. How to highlight the selected row in blue again?
Is there a way to increase Item Height for Listview items? Because in the win XP, Listview ItemHeight = 13 by default, but size of my pictures are 14x14.
| Description: |

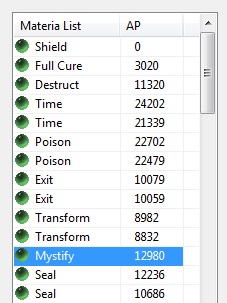

| Here's what the listview looks like now |
|
| Filesize: |
30.8 KB |
| Viewed: |
3966 Time(s) |
|
Last edited by Razi on Tue Oct 31, 2023 10:19 am; edited 3 times in total |
|
| Back to top |
|
|
Dark Byte
Site Admin
Reputation: 470
Joined: 09 May 2003
Posts: 25807
Location: The netherlands
|
| Posted: Mon Oct 30, 2023 8:30 am Post subject: |
|
|
state is a string that contains the text highlighted (and some other things) when highlighted
in those cases draw a highlight background inside the rectangle before drawing the picture and text
_________________
Do not ask me about online cheats. I don't know any and wont help finding them.
Like my help? Join me on Patreon so i can keep helping |
|
| Back to top |
|
|
Razi
Expert Cheater
Reputation: 1
Joined: 17 Jan 2018
Posts: 205
|
| Posted: Tue Oct 31, 2023 10:16 am Post subject: |
|
|
| Dark Byte wrote: | | state is a string that contains the text highlighted (and some other things) when highlighted |
Do not know how to use state in code
| Dark Byte wrote: | | in those cases draw a highlight background inside the rectangle before drawing the picture and text |

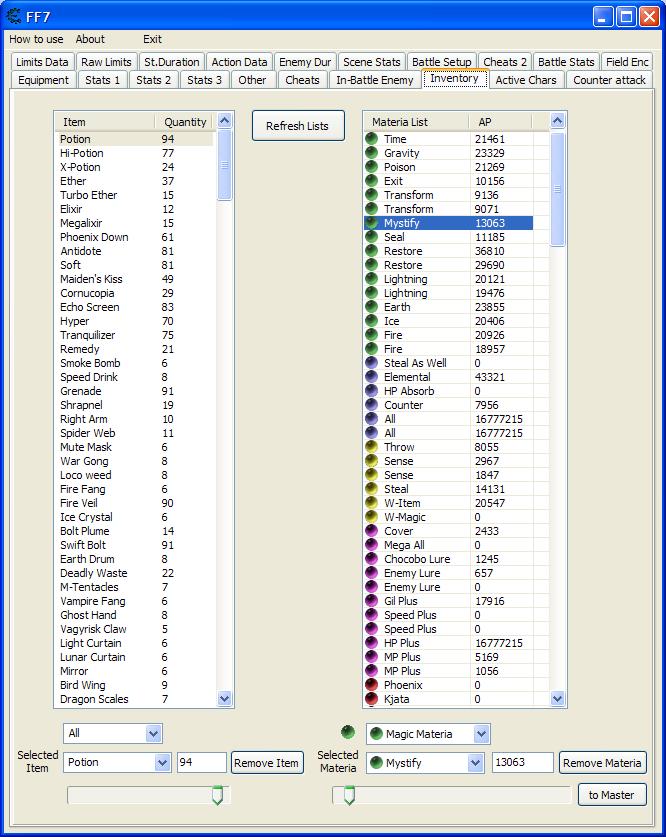

I managed to do it like this:
| Code: | Listview1.OnCustomDrawItem = function(sender, ListItem, state, DefaultDraw)
local rect1=ListItem.displayRect(0)
sender.Canvas.textOut(rect1.Left + 21, rect1.Top + 1, ListItem.Caption)
sender.Canvas.textOut(rect1.Left + 121, rect1.Top + 1, ListItem.SubItems.text)
sender.Canvas.draw(rect1.Left + 1, rect1.Top + 1, ilist[1])
local rect2=sender.Selected.displayRect(0)
sender.Canvas.Brush.Color=clHighlight --0xff9933
sender.Canvas.fillRect(rect2.Left,rect2.Top,rect2.Right,rect2.Bottom)
sender.Canvas.Font.Color=clHighlightText
sender.Canvas.textOut(rect2.Left + 21, rect2.Top + 1, sender.Items[sender.ItemIndex].Caption)
sender.Canvas.textOut(rect2.Left + 121, rect2.Top + 1, sender.Items[sender.ItemIndex].SubItems.text)
sender.Canvas.draw(rect2.Left + 1, rect2.Top + 1, ilist[1])
end |
Is there a way to improve the code? Or does anyone have any tips?
Another question: how to increase the row/line height in the Listview (Listview.ItemHeight)? The only idea is to increase Listview.Font.Height/Size. In win XP it looks like this: screenshot below
| Description: |
|
| Filesize: |
106.05 KB |
| Viewed: |
3523 Time(s) |
|
|
|
| Back to top |
|
|
|
|
