Color, Pen, Brush Mode And Style


Post new topic   Reply to topic    Cheat Engine Forum Index -> Cheat Engine Lua Scripting
View previous topic :: View next topic
Author Message
Corroder
Grandmaster Cheater Supreme
Reputation: 75

Joined: 10 Apr 2015
Posts: 1668
PostPosted: Mon Oct 05, 2020 11:35 pm    Post subject: Color, Pen, Brush Mode And Style Reply with quote
Hi, my question (on CE 7.1)

1. Color (in Lua)
example:

Code:
form.Color = 'clRed'  --> this is not work

or

form.Color = clRed  --> this is not work

or

form.Color = 0xff  --> this is work

or

form.Color = 255 --> this is work



Why I can not use 'clRed' or clRed?. Is it a bug?
Of course, I can make reference substitution like clRed = 0xfff, clBlack = 0, etc, but I mean is to use the color name directly as provided by CE.


2. Canvas Pen and Brush
Example

Code:
Canvas.Brush.Style = 'bsSolid'  --> not work
Canvas.Brush.Style = 0  -->  work

Canvas.Brush.Color = 'clBlack'  -->  not work
Canvas.Brush.Color = clBlack   -->  not work
Canvas.Brush.Color = 0   --> work


Same question with No.1

3. Where I can find Canvas Brush and Pen Style complete Code Numbers?.
I need to know code for Pen.Mode = pmXor and Pen.Mode = pmCopy.


4. With these script

Code:
if f then f.Destroy() end
f=createForm()
f.setSize(300,300)

local down=1
local startX, startY

f.OnMouseDown=function()
  x,y = f.ScreenToClient(getMousePos())
  startX = x
  startY = y
  down=0
end

f.OnMouseUp=function()
  down=1
end

f.OnMouseMove=function()
  local x,y=f.ScreenToClient(getMousePos())
  if down==0 then
    f.caption = startX..' '..startY..' '..x..' '..y
    --f.Canvas.Clear()
    f.Canvas.Pen.Color = 0xff
    f.Canvas.Pen.Width = 1
    f.Canvas.Brush.Color = f.color
    f.Canvas.Brush.Style = 0
    f.Canvas.TransparentColor = 0
    f.Canvas.ellipse(startX, startY, x, y)

  end
end


How I can draw perfect ellipse or rectangle without clear the canvas ?.

 Description:
 Filesize:  21.27 KB
 Viewed:  1642 Time(s)


_________________
Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL
Back to top
View user's profile Send private message
Dark Byte
Site Admin
Reputation: 471

Joined: 09 May 2003
Posts: 25855
Location: The netherlands
PostPosted: Tue Oct 06, 2020 1:15 am    Post subject: Reply with quote
1: clRed is just an integer value. But next version will have it defined in defines.lua

2: same. Color is an integer, not a enum or typeset so no string

3: lazarus. type in pmXor , hold shift and click it
(i'll try to document it)

edit:
Code:

TFPPenMode = (pmBlack, pmWhite, pmNop, pmNot, pmCopy, pmNotCopy,
                pmMergePenNot, pmMaskPenNot, pmMergeNotPen, pmMaskNotPen, pmMerge,
                pmNotMerge, pmMask, pmNotMask, pmXor, pmNotXor);


so:
Code:

pmBlack=0
pmWhite=1
pmNop=2
pmNot=3
pmCopy=4
pmNotCopy=5
pmMergePenNot=6
pmMaskPenNot=7
pmMergeNotPen=8
pmMaskNotPen=9
pmMerge=10
pmNotMerge=11
pmMask=12
pmNotMask=13
pmXor=14
pmNotXor=15


4: draw a blank ellipse over the last drawn one before drawing the new ellipse
or when you start dragging create a copy of the image and while moving draw the original image before you draw.
when released you can destroy the original
_________________
Do not ask me about online cheats. I don't know any and wont help finding them.

Like my help? Join me on Patreon so i can keep helping
Back to top
View user's profile Send private message MSN Messenger
Corroder
Grandmaster Cheater Supreme
Reputation: 75

Joined: 10 Apr 2015
Posts: 1668
PostPosted: Tue Oct 06, 2020 2:05 am    Post subject: Reply with quote
Great, DB. Thanks for all information and tutorial.
So, we are waiting for new updates in next CE Version.
Good luck...

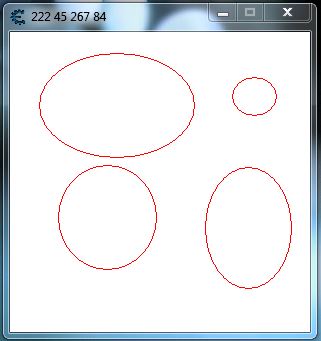

EDIT: No.4

Done, but I must set the brush color to form color.

Code:
if f then f.Destroy() end
f=createForm()
f.setSize(300,300)
f.Transparent = true
f.Position = 'poScreenCenter'
f.Caption = ''
f.Color = 0xffffff

local down=1
local startX, startY, endX, endY

f.OnMouseDown=function(sender, button, x, y)
  down=0
  startX = x
  startY = y
  endX = x
  endY = y
end

f.OnMouseUp=function(sender, button, x, y)
  down=1
end

f.OnMouseMove=function(sender, button, x, y)
  local x,y=f.ScreenToClient(getMousePos())
  if down==0 then
    f.caption = startX..' '..startY..' '..x..' '..y
    f.Canvas.Brush.Color = f.Color
    f.Canvas.TransparentColor = 0xffffff
    f.Canvas.Pen.Width = 1
    f.Canvas.Pen.Color = f.Canvas.Brush.Color
    f.Canvas.ellipse(startX, startY, endX, endY)
    f.Canvas.Pen.Color = 0xff
    f.Canvas.ellipse(startX, startY, x, y)
  end
  endX = x; endY = y
end



 Description:
 Filesize:  22.74 KB
 Viewed:  1615 Time(s)


_________________
Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL
Back to top
View user's profile Send private message
