 Posted: Sat Sep 26, 2020 8:41 pm Post subject: Some Image Support Functions (Alternatively) |
 |
|
From these topics:
The best until now:
https://forum.cheatengine.org/viewtopic.php?t=609506
and this embedded style:
https://forum.cheatengine.org/viewtopic.php?t=610353

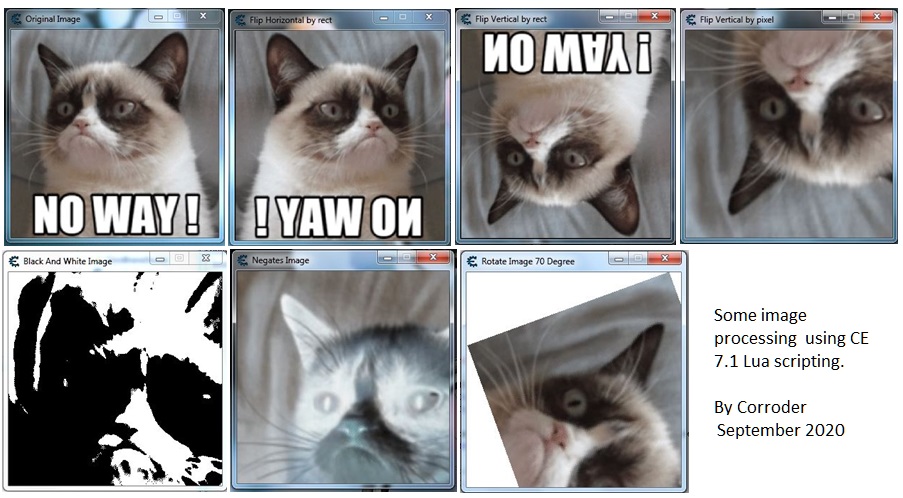

Here is an alternatively to processing an image using CE Lua script.
Some functions for:
1. Flip image vertically by pixel
2. Flip image vertically using copy rect
3. Flip image horizontally by copy rect
4. Rotate image by degree angle (pixel)
5. Turn image color to black and white (pixel)
6. Negates an image (pixel)
WARNING:
- Using image pixel make the process slow, so consider your image pixel size to use it.
- Using pixel make 'tricky' the CPU
You are free to edit and modify the script to get better result as your own style.
Script and example:
| Code: | -- Helpers
function getRGB(col)
local r,g,b = col & 0xff, col >> 8 & 0xff, col >> 16 & 0xff
return r,g,b
end
function makeColor(r,g,b)
local colorBitShiftRed = 0
local colorBitShiftBlue = 16
local colorBitShiftGreen = 8
local function clamp(value, min, max) return math.min(math.max(value, min), max) end
r = 0 or clamp(r, 0, 255); g = 0 or clamp(g, 0, 255); b = 0 or clamp(b, 0, 255);
return (r << colorBitShiftRed) | (g << colorBitShiftGreen) | (b << colorBitShiftBlue)
end
--Flips vertically a picture
function getImageFlipVertical(img)
local w = img.width-1
local h = img.height-1
local flip = createImage(self)
flip.width = w+1
flip.height = h+1
for y = h, 0, -1 do
for x = 0,w,1 do
local col = img.Picture.Bitmap.Canvas.getPixel(x,y)
flip.Canvas.setPixel(x,h-y,col)
end
end
--return flip
img.Picture = flip.Picture
-- optional
img.Left = 0
img.Top = 0
img.Width = flip.Width
img.Height = flip.Height
img.Stretch = true
flip.Destroy()
end
-- Rotates a picture
-- BackColor is Optional
function Rotate(img, angle)
local angRad = angle*math.pi/180
local cosine = math.cos(angRad)
local sine = math.sin(angRad)
local width_out = math.ceil(img.width * math.abs(cosine) + img.height * math.abs(sine))
local height_out = math.ceil(img.width * math.abs(sine) + img.height * math.abs(cosine))
local out = createImage(self)
out.width = width_out
out.height = height_out
out.Canvas.Clear()
out.Picture.Bitmap.Canvas.TransparentColor = 0
out.Picture.Bitmap.Canvas.Clear()
local x_center_image = img.width / 2
local y_center_image = img.height / 2
local x_center_outImage = out.width / 2
local y_center_outImage = out.height / 2
for y = 0, height_out-1 do
for x = 0, width_out-1 do
local outX = math.ceil(cosine*(x-x_center_outImage)+sine*(y-y_center_outImage)+x_center_image)
local outY = math.ceil(-sine*(x-x_center_outImage)+cosine*(y-y_center_outImage)+y_center_image)
if outX >= 0 and outX < img.width and outY >=0 and outY < img.height then
out.Canvas.setPixel(x, y, img.Picture.Bitmap.Canvas.getPixel(outX,outY))
end
end
end
img.Picture = out.Picture
img.Left = 0
img.Top = 0
img.Width = out.Width
img.Height = out.Height
img.Stretch = true
out.Destroy()
--return out
end
-- Resizes a picture
function Resize(img,newX,newY)
local calc = createImage(self)
calc.width = newX
calc.height = newY
local w, h = img.width, img.height
for x = 1, newX do
for y = 1, newY do
local intX = math.floor(x*(w/newX))
local intY = math.floor(y*(h/newY))
calc.Canvas.setPixel(x,y,img.Picture.Bitmap.Canvas.getPixel(intX,intY))
end
end
img.Picture = calc.Picture
img.Left = 0
img.Top = 0
img.Width = calc.Width
img.Height = calc.Height
img.Stretch = true
calc.Destroy()
--return calc
end
-- Negates a picture
function nvgImage(img)
local im = createImage(self)
im.width = img.width
im.height = img.height
for y =0,img.height-1 do
for x = 0, img.width-1 do
local color = img.Picture.Bitmap.Canvas.getPixel(x,y)
r,g,b = getRGB(color)
local nwCol = makeColor(255-r,255-g,255-b,a)
im.Canvas.setPixel(x,y,nwCol)
end
end
img.Picture = im.Picture
img.Left = 0
img.Top = 0
img.Width = im.Width
img.Height = im.Height
img.Stretch = true
im.Destroy()
--return im
end
-- Flashes a picture
function flashImg(img)
local canalMin = {["r"]=255,["g"]=255,["b"]=255}
local canalMax = {["r"]=0,["g"]=0,["b"]=0}
local w,h = img.width,img.height
local out = createImage(self)
out.width = w
out.height = h
for y=0,h-1 do
for x=0,w-1 do
local col = img.Picture.Bitmap.Canvas.getPixel(x,y)
r,g,b = getRGB(col)
local colSet = {}
colSet.r = r
colSet.g = g
colSet.b = b
for k in pairs(colSet) do
if colSet[k]<canalMin[k] then canalMin[k]=colSet[k] end
if colSet[k]>canalMax[k] then canalMax[k]=colSet[k] end
end
end
end
for k,v in pairs(canalMin) do print('min',k,v) end
for k,v in pairs(canalMax) do print('max',k,v) end
for y=0,h-1 do
for x=0,w-1 do
local col = img.Picture.Bitmap.Canvas.getPixel(x,y)
r,g,b = getRGB(col)
local colSet1 = {}
colSet1.r = r
colSet1.g = g
colSet1.b = b
for k in pairs(colSet1) do
colSet1[k] = ((colSet1[k]-canalMin[k])*255)
colSet1[k]= colSet1[k]/(canalMax[k]-canalMin[k])
end
local nwCol = makeColor(colSet1.r,colSet1.g,colSet1.b,img.Picture.Bitmap.Canvas.getPixel(x,y))
out.Canvas.setPixel(x,y,nwCol)
end
end
img.Picture = out.Picture
img.Left = 0
img.Top = 0
img.Width = out.Width
img.Height = out.Height
img.Stretch = true
out.Destroy()
--return out
end
--- Flip using copy rect
function FlipHorizontal(img)
local DummyImage, X, Y
X = img.Picture.Bitmap.Width
Y = img.Picture.Bitmap.Height
DummyImage = createImage(self)
DummyImage.Picture.Bitmap.Width = X
DummyImage.Picture.Bitmap.Height = Y
DummyImage.Picture.Bitmap.Canvas.CopyRect(X,0,0,Y, img.Picture.Bitmap.Canvas, 0,0,X,Y)
img.Picture = DummyImage.Picture
img.Left = 0
img.Top = 0
img.Width = img.Width
img.Height = img.Height
img.Stretch = true
DummyImage.Destroy()
end
function FlipVertical(img)
local DummyImage, X, Y
X = img.Picture.Bitmap.Width
Y = img.Picture.Bitmap.Height
DummyImage = createImage(self)
DummyImage.Picture.Bitmap.Width = X
DummyImage.Picture.Bitmap.Height = Y
DummyImage.Picture.Bitmap.Canvas.CopyRect(X,0,0,Y, img.Picture.Bitmap.Canvas, X,Y,0,0)
img.Picture = DummyImage.Picture
img.Left = 0
img.Top = 0
img.Width = img.Width
img.Height = img.Height
img.Stretch = true
DummyImage.Destroy()
end
--- Turn image to black and white
function BW(Img)
local Thresold = 128
local Pixel, Intensity, r, g, b, newPixel
local out = createImage(self)
out.width = Img.Width
out.height = Img.Height
out.Picture.Bitmap.width = Img.Width
out.Picture.Bitmap.height = Img.Height
out.Canvas.Clear()
out.Picture.Bitmap.Canvas.Clear()
for y= 0, Img.Height-1 do
for x = 0, Img.Width-1 do
Pixel = Img.Picture.Bitmap.Canvas.getPixel(x,y)
r,g,b = getRGB(Pixel)
Intensity = (r + g + b) / 3
if Intensity < Thresold then
newPixel = 0
else
newPixel = 0xffffff
end
out.Canvas.setPixel(x, y, newPixel)
end
end
Img.Picture = out.Picture
Img.Left = 0
Img.Top = 0
Img.Width = out.Width
Img.Height = out.Height
Img.Stretch = true
out.Destroy()
end
---- Testing
if f then f.destroy() end
f = createForm()
f.setSize(300,300)
f.Position = 'poScreenCenter'
f.Caption = 'Original Image'
Image1 = createImage(f)
Image1.setSize(300,300)
Image1.setPosition(0,0)
Image1.stretch = true
Image1.Picture.loadFromStream(findTableFile('sample.png').stream)
Image1.Transparent = true
UnitTest = [[
--flip vertical by pixel
f.Caption = 'Flip Vertical by pixel'
getImageFlipVertical(Image1)
--flip vertical by copy rect
f.Caption = 'Flip Vertical by rect'
FlipVertical(Image1)
--flip Horizontal by copy rect
f.Caption = 'Flip Horizontal by rect'
FlipHorizontal(Image1)
--Rotate by 70 degree
f.Caption = 'Rotate Image 70 Degree'
Rotate(Image1, 70)
--Negates an image
f.Caption = 'Negates Image'
nvgImage(Image1)
--Flashing an image (not tested)
--r value from RGB has not fixed yet
f.Caption = 'Flashing Image'
flashImg(Image1)
--Turn an image to black and white color
f.Caption = 'Black And White Image'
BW(Image1)
]] |
I share the scripts above since I didn't plan to share my 'CE Image Processing Tool' app.
Good luck...
