how to set listbox's items color?

Cheat Engine Forum Index -> Cheat Engine Lua Scripting

View previous topic :: View next topic

Author

Message

cancandodo
Advanced Cheater

Reputation: 0

Joined: 09 Mar 2012
Posts: 70

Posted: Wed Jan 22, 2020 7:58 pm Post subject: how to set listbox's items color?

for ex if adderess1 's value ==1 set lisebox1's No.5 item;s color to green if adderess1 's value ==0 set lisebox1's No.5 item;s color to black UDF1.CEListBox1.Font.Color=0x00ff00 can set all items's color to green but i just want to set item[5] to green or red

Corroder
Grandmaster Cheater Supreme

Reputation: 75

Joined: 10 Apr 2015
Posts: 1668

Posted: Thu Jan 23, 2020 8:49 pm Post subject:

It is easier using listview instead.

Code:

lv.ViewStyle='vsReport'
lv.RowSelect=true
lv.HideSelection=false
lv.Align = 'alClient'

-- Add coloumns
c1=lv.Columns.add()
c1.Caption='First Name'
c1.AutoSize = true

c2=lv.Columns.add()
c2.Caption='Last Name'

c3=lv.Columns.add()
c3.Caption='Gen'

-- Add items and sub-items
l=lv.Items.add()
l.Caption='Stevie'
l.SubItems.add('Wonder')
l.SubItems.add('50')

l=lv.Items.add()
l.Caption='Cancandodo'
l.SubItems.add('Dodo')
l.SubItems.add('20')

l=lv.Items.add()
l.Caption='Ali'
l.SubItems.add('Baba')
l.SubItems.add('500')

lv.Index = 1

lv.OnCustomDrawItem =function(sender, ListItem, state, DefaultDraw)
if ListItem.Index == 1 then
sender.canvas.font.color = 0x00ff
end
return true
end

So. that use 'OnCustomDrawItem' command. For CEListbox, there is some implementation for a custom draw but I don't know how to use it on CE Lua script.
Anyhow, this is from free pascal code.

Code:

procedure TForm1.ListBox1DrawItem(Control: TWinControl; Index: Integer;
Rect: TRect; State: TOwnerDrawState);
var
ListBox: TListBox;
Canvas: TCanvas;
S: string;
begin
ListBox := Control as TListBox;
Canvas := ListBox.Canvas;

Canvas.Font.Assign(ListBox.Font);

if odSelected in State then
begin
Canvas.Brush.Color := clHighlight;
Canvas.Font.Color := clHighlightText;
end
else
begin
Canvas.Brush.Color := clWindow;
Canvas.Font.Color := clWindowText;
end;

if ListBox.Items.Objects[Index] = TObject(1) then
begin
Canvas.Font.Color := clRed;
Canvas.Font.Style := [fsBold, fsStrikeOut]
end;

Canvas.FillRect(Rect);
S := ListBox.Items[Index];
Canvas.TextRect(Rect, S, [tfSingleLine, tfVerticalCenter]);

end;

Try in CE Lua script, but not work. Maybe someone able to fix it. Just for illustration.

Code:

f = createForm()
lb = createListBox(f)
lb.setSize(300,200)

lb.Style = 'lbOwnerDrawVariable'
--lb.Style = 'lbStandard'
lb.Font.Color = 31542 -- green
lb.Font.Name = 'Arial'
lb.Font.Pitch = 'fpVariable'
lb.Font.Quality = 'fqDraft'
lb.Options = 'lboDrawFocusRect'
lb.MultiSelect = false

for i=1, 10 do
lb.items.add('Item no. '..i)
end

lb.itemIndex = 4

lb.OnCustomDrawItem = function(sender, itemIndex, OwnerDrawState)
if itemIndex == 4 then
local c = sender.getCanvas()
c.Brush.Color = 0xFF0000
c.fillRect(0,0, sender.Width, sender.Height)
c.Font.Color = 0x0000FF
c.textOut(0, 0, sender.Top + 2, lb.Items[4])
end
return true
end

_________________

Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL

Dark Byte
Site Admin

Reputation: 470

Joined: 09 May 2003
Posts: 25808
Location: The netherlands

Posted: Fri Jan 24, 2020 3:47 am Post subject:

here's a working listbox version:

Code:

f = createForm()
lb = createListBox(f)
lb.setSize(300,200)

lb.Style = 'lbOwnerDrawVariable'
--lb.Style = 'lbStandard'
lb.Font.Color = 31542 -- green
lb.Font.Name = 'Arial'
lb.Font.Pitch = 'fpVariable'
lb.Font.Quality = 'fqDraft'
lb.Options = 'lboDrawFocusRect'
lb.MultiSelect = false

for i=1, 10 do
lb.items.add('Item no. '..i)
end

lb.itemIndex = 4

lb.OnDrawItem = function(sender, index, rect, state)
local c = sender.Canvas
-- print(index..' = '..state..' : '..rect.Top..','..rect.Left..','..rect.Right..','..rect.Bottom)
if index == 4 then
c.Brush.Color = 0xFF00ff
c.Font.Color = 0x0000FF
else
c.Brush.Color = 0x00ffff
c.Font.Color = 0xff0000
end

if state:find("odSelected")~=nil then
c.Brush.Color=0
end

c.fillRect(rect.left,rect.Top, rect.Right, rect.Bottom)
c.textOut(0, 0, rect.Top, lb.Items[index])
end

_________________

Do not ask me about online cheats. I don't know any and wont help finding them.

Like my help? Join me on Patreon so i can keep helping

Corroder
Grandmaster Cheater Supreme

Reputation: 75

Joined: 10 Apr 2015
Posts: 1668

Posted: Fri Jan 24, 2020 8:31 am Post subject:

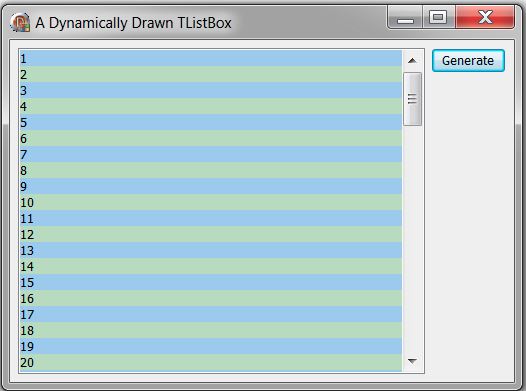

DB Thanks, for the work. Next, how if want make CE Listbox as shown on the attached image?. Using CE Lua script.

Code:

f = createForm()
lb = createListBox(f)
lb.setSize(220,200)

lb.Style = 'lbOwnerDrawVariable'
--lb.Style = 'lbStandard'
lb.Font.Color = 31542 -- green
lb.Font.Name = 'Arial'
lb.Font.Pitch = 'fpVariable'
lb.Font.Quality = 'fqDraft'
lb.Options = 'lboDrawFocusRect'
lb.MultiSelect = false

b = createButton(f)
b.setPosition(230,10)
b.Caption = 'Update'

--for i=1, 10 do
-- lb.items.add('Item no. '..i)
--end

lb.OnDrawItem = function(sender, index, rect, state)
local c = sender.Canvas
local S
c.Brush.Color = sender.Items[index].Color
c.fillRect(rect.left,rect.Top, rect.Right, rect.Bottom)
S = sender.Items[index]
c.textOut(0, S, rect.Top, rect.Bottom) -- Must be [tfSingleLine, tfVerticalCenter])
end

b.OnClick = function(sender)
-- lb.Items.BeginUpdate;
lb.Clear()
for i=1, 10 do
lb.items.add('Item no. '..i)
-- lb.Items.AddObject(i.ToString, TObject(IfThen(Odd(i), clSkyBlue, clMoneyGreen)));
-- lb.Items.EndUpdate
end
end


Description:

Listbox Draw Dinamically

Filesize:

35.69 KB

Viewed:

3211 Time(s)

_________________

Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL

cancandodo
Advanced Cheater

Reputation: 0

Joined: 09 Mar 2012
Posts: 70

Posted: Sun Feb 02, 2020 6:06 pm Post subject:

Dark Byte wrote:

here's a working listbox version:

Code:

f = createForm()
lb = createListBox(f)
lb.setSize(300,200)

lb.Style = 'lbOwnerDrawVariable'
--lb.Style = 'lbStandard'
lb.Font.Color = 31542 -- green
lb.Font.Name = 'Arial'
lb.Font.Pitch = 'fpVariable'
lb.Font.Quality = 'fqDraft'
lb.Options = 'lboDrawFocusRect'
lb.MultiSelect = false

for i=1, 10 do
lb.items.add('Item no. '..i)
end

lb.itemIndex = 4

lb.OnDrawItem = function(sender, index, rect, state)
local c = sender.Canvas
-- print(index..' = '..state..' : '..rect.Top..','..rect.Left..','..rect.Right..','..rect.Bottom)
if index == 4 then
c.Brush.Color = 0xFF00ff
c.Font.Color = 0x0000FF
else
c.Brush.Color = 0x00ffff
c.Font.Color = 0xff0000
end

if state:find("odSelected")~=nil then
c.Brush.Color=0
end

c.fillRect(rect.left,rect.Top, rect.Right, rect.Bottom)
c.textOut(0, 0, rect.Top, lb.Items[index])
end

tks!!!
