 Posted: Fri Feb 12, 2010 9:30 am Post subject: Custom Controls is annoying me... |
 |
|
Im attempting to create this control to be used for my Disassembler, however it simply desided not to work...
For some reason, it keeps doing WM_PAINT, causing it to loop infinitively, hooking up 50% of my CPU (1 core runs on 100%)
Second, FillRect keeps making annoying patterns on my background instead of colors, why???  , for once i attempted to be a little organized in my coding, and created a class for my windows
CustomControl.h
| Code: | #include <Windows.h>
class CustomControl{
public:
CustomControl(HINSTANCE hInstance, HWND hWndParent, int X, int Y, int nWidth, int nHeight);
~CustomControl();
BOOL registerClass(HINSTANCE hInstance);
//Window Handlers
LRESULT OnPaint();
//Window Procedure
static LRESULT CALLBACK WndProc(HWND hWnd, UINT msg, WPARAM wParam, LPARAM lParam);
private:
HWND hWnd;
}; |
CustomControl.cpp
| Code: | #include <stdio.h>
#include "CustomControl.h"
#define CUSTOM_CLASS "custcls"
CustomControl::CustomControl(HINSTANCE hInstance, HWND hWndParent, int X, int Y, int nWidth, int nHeight){
if(!registerClass(hInstance))
return;
HWND hWnd = CreateWindowEx(WS_EX_STATICEDGE, CUSTOM_CLASS, NULL, WS_VISIBLE | WS_CHILD, X, Y, nWidth, nHeight, hWndParent, NULL, hInstance, NULL);
}
CustomControl::~CustomControl(){
}
BOOL CustomControl::registerClass(HINSTANCE hInstance){
WNDCLASSEX wc;
if(GetClassInfoEx(hInstance, CUSTOM_CLASS, &wc))
return TRUE;
wc.cbSize = sizeof(WNDCLASSEX);
wc.style = 0;
wc.lpfnWndProc = WndProc;
wc.cbClsExtra = 0;
wc.cbWndExtra = sizeof(CustomControl*);
wc.hInstance = hInstance;
wc.hIcon = LoadIcon(NULL, IDI_APPLICATION);
wc.hCursor = LoadCursor(NULL, IDC_ARROW);
wc.hbrBackground = (HBRUSH)(COLOR_WINDOW);
wc.lpszMenuName = NULL;
wc.lpszClassName = CUSTOM_CLASS;
wc.hIconSm = 0;
if(!RegisterClassEx(&wc)){
MessageBox(NULL, "Window Registration Failed!", "Error!",
MB_ICONEXCLAMATION | MB_OK);
return FALSE;
}
return TRUE;
}
LRESULT CustomControl::OnPaint(){
HDC hDC = GetDC(hWnd);
HDC hDCMem = CreateCompatibleDC(hDC);
RECT rect;
GetClientRect(hWnd, &rect);
int iHeight = rect.bottom-rect.top;
int iWidth = rect.right-rect.left;
HBITMAP hBM = CreateCompatibleBitmap(hDCMem, iWidth, iHeight);
HBITMAP hOldBM = (HBITMAP)SelectObject(hDCMem, hBM);
HBRUSH hbr = CreateSolidBrush(RGB(rand()%255, rand()%255, rand()%255));
FillRect(hDCMem, &rect, hbr);
TextOut(hDCMem, 5, 5, "Hello world!", 12);
BitBlt(hDC, 0, 0, iWidth, iHeight, hDCMem, 0, 0, SRCCOPY);
SelectObject(hDCMem, hOldBM);
DeleteObject(hBM);
DeleteDC(hDCMem);
ReleaseDC(hWnd, hDC);
return 0;
}
CustomControl* getCustomControl(HWND hWnd){
return (CustomControl*)GetWindowLong(hWnd, 0);
}
LONG setCustomControl(HWND hWnd, CustomControl *customControl){
return SetWindowLong(hWnd, 0, (LONG)customControl);
}
LRESULT CALLBACK CustomControl::WndProc(HWND hWnd, UINT Msg, WPARAM wParam, LPARAM lParam){
CustomControl *pcc = getCustomControl(hWnd);
switch(Msg){
case WM_NCCREATE:
pcc = (CustomControl*)malloc(sizeof(CustomControl));
pcc->hWnd = hWnd;
setCustomControl(hWnd, pcc);
return TRUE;
break;
case WM_ERASEBKGND:
return FALSE;
break;
case WM_PAINT:
return pcc->OnPaint();
break;
default:
return DefWindowProc(hWnd, Msg, wParam, lParam);
}
return 0;
} |
(and yes, i do attempt to do Double Buffering, which i think is why its not working...)
| Description: |
|
| Filesize: |
38.49 KB |
| Viewed: |
5795 Time(s) |
|
Last edited by Anden100 on Sat Feb 13, 2010 6:10 am; edited 1 time in total |
|
| Back to top |
|
 |
hcavolsdsadgadsg
I'm a spammer
![]() Reputation: 26
Joined: 11 Jun 2007
Posts: 5801
|
| Posted: Fri Feb 12, 2010 5:20 pm Post subject: Re: Custom Controls is annoying me... |
|
|
| Anden100 wrote: | Im attempting to create this control to be used for my Disassembler, however it simply desided not to work...
Second, FillRect keeps making annoying patterns on my background instead of colors, why??? , for once i attempted to be a little organized in my coding, and created a class for my windows |
Can you get a screenshot of that?
|
|
| Back to top |
|
|
Anden100
Grandmaster Cheater
![]() Reputation: 0
Joined: 20 Apr 2007
Posts: 668
|
| Posted: Sat Feb 13, 2010 6:14 am Post subject: Re: Custom Controls is annoying me... |
|
|
| slovach wrote: | | Can you get a screenshot of that? |

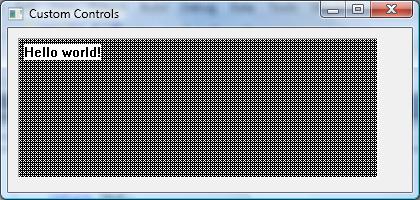

Screenshot in original post, keep in mind that i had to put a Sleep(200) when taking the screenshot, it changes so fast, that every time i try to take a screenshot i catch it in the middle of painting (half of the Control is one pattern, and the other half is another pattern), The OnPaint function keeps being called, and the background changes, after some time (a second or two), the backgrounds gets white, and it gets drawn outside the rectangle.
I figured i need to do BeginPaint/EndPaint for the WM_PAINT message, to "validate" it (dunno?) to avoid it from being called again, changing that avoids the loop. But i still don't understand why i get those wierd patterns
|
|
| Back to top |
|
|
hcavolsdsadgadsg
I'm a spammer
![]() Reputation: 26
Joined: 11 Jun 2007
Posts: 5801
|
| Posted: Sat Feb 13, 2010 12:44 pm Post subject: |
|
|
at first glance, it looks like you're ending up with a monochromatic bitmap somewhere along the lines.
check MSDN and look over your OnPaint() function.
|
|
| Back to top |
|
|
Anden100
Grandmaster Cheater
![]() Reputation: 0
Joined: 20 Apr 2007
Posts: 668
|
| Posted: Sat Feb 13, 2010 2:29 pm Post subject: |
|
|
| slovach wrote: | at first glance, it looks like you're ending up with a monochromatic bitmap somewhere along the lines.
check MSDN and look over your OnPaint() function. |
Allready figured out that i need to use BeginPaint()/EndPaint(), except that i can't figure out what's wrong
And, monochromatic?, thats something about how light the color is right?
|
|
| Back to top |
|
|
hcavolsdsadgadsg
I'm a spammer
![]() Reputation: 26
Joined: 11 Jun 2007
Posts: 5801
|
| Posted: Sat Feb 13, 2010 5:16 pm Post subject: |
|
|
it means 1 bit, black and white.
the 'Compatable' functions should try and match your desktop color depth, but i think it's possible to end up with a black and white surface under some circumstances.
i don't have time right now to go perusing through MSDN right now, but you should check out the documentation for the functions you're calling. GetObject() may also be useful as it returns information about a GDI object you pass it, so you can check bit depth etc.
|
|
| Back to top |
|
|
Anden100
Grandmaster Cheater
![]() Reputation: 0
Joined: 20 Apr 2007
Posts: 668
|
| Posted: Sat Feb 13, 2010 6:21 pm Post subject: |
|
|
| slovach wrote: | it means 1 bit, black and white.
the 'Compatable' functions should try and match your desktop color depth, but i think it's possible to end up with a black and white surface under some circumstances.
i don't have time right now to go perusing through MSDN right now, but you should check out the documentation for the functions you're calling. GetObject() may also be useful as it returns information about a GDI object you pass it, so you can check bit depth etc. |
That information sure was helpful!, as for what i understand, i then have to CreateCompatibleBitmap using the real HDC instead of the one i got from CreateCompatibleDC?, seems to work, tyvm!
|
|
