 Posted: Tue Apr 07, 2026 10:08 am Post subject: [LUA][SRC] Free Trainer Form with 3D Navigation System |
 |
|

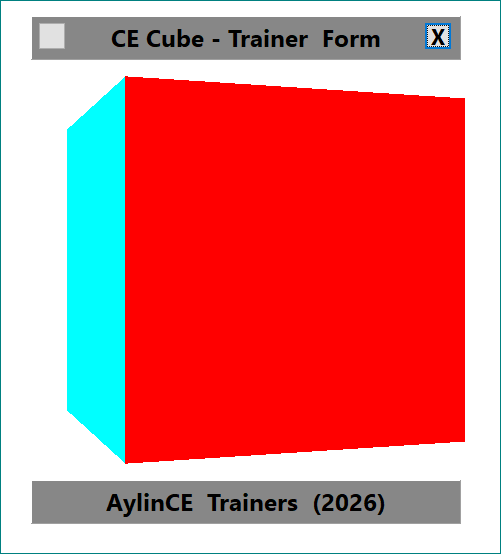

A freely customizable Trainer form for those who are still in the development phase and know what they're doing.
You can navigate between pages using the arrow keys.
Note1: Please mention any development ideas in the comments.
Note2: This article is inspired by [this article/source].
https://forum.cheatengine.org/viewtopic.php?t=623634
| Code: | -- *********************************************************
-- Module
-- *********************************************************
local cubeScale = 2.0 -- Increase or decrease the cube size.
-- RENK VE DOLDURMA FIX
local function myFillPolygon(canvas, points, color)
local numPoints = #points
if numPoints < 3 then return end
local minY, maxY = points[1].y, points[1].y
for i = 1, numPoints do
minY = math.min(minY, points[i].y)
maxY = math.max(maxY, points[i].y)
end
canvas.Pen.Color = 0x000000
canvas.Brush.Color = color
for y = math.floor(minY), math.ceil(maxY) do
local intersections = {}
for i = 1, numPoints do
local p1 = points[i]
local p2 = points[(i % numPoints) + 1]
if (p1.y <= y and p2.y > y) or (p2.y <= y and p1.y > y) then
local slope = (p2.x - p1.x) / (p2.y - p1.y)
table.insert(intersections, p1.x + (y - p1.y) * slope)
end
end
table.sort(intersections)
for i = 1, #intersections, 2 do
local x1, x2 = math.floor(intersections[i]), math.ceil(intersections[i+1] or intersections[i])
if x1 < x2 then canvas.fillRect(x1, y, x2, y + 1) end
end
end
end
-- SETTINGS AND COORDINATES (Size is adjusted according to scale)
local size = 70 * cubeScale
local vertices = {
{ -size, -size, -size }, { size, -size, -size }, { size, size, -size }, { -size, size, -size },
{ -size, -size, size }, { size, -size, size }, { size, size, size }, { -size, size, size }
}
-- *********************************************************
-- GUI
-- *********************************************************
if cubefrm then cubefrm.Destroy() cubefrm=nil end
DP1=getScreenDPI()/96
cubefrm=createForm()
cubefrm.height=470*DP1 cubefrm.width=400*DP1
cubefrm.PopupMode=0 cubefrm.caption="AylinCE Trainers (2026)"
cubefrm.Position="poDesktopCenter" cubefrm.ShowInTaskBar="stAlways"
cubefrm.BorderStyle="bsNone"
cubefrm.setLayeredAttributes(0x000010, 255, LWA_COLORKEY | LWA_ALPHA )
cubefrm.Color=0x000010
-------------------------
local acb = {}
----------------------- acb.cbimg -----
acb.cbimg=createImage(cubefrm)
acb.cbimg.AutoSize=false
acb.cbimg.height=400*DP1 acb.cbimg.width=400*DP1 acb.cbimg.left=0*DP1 acb.cbimg.top=35*DP1
acb.cbimg.Stretch=false
-----------------------
----------------------- acb.mpnl1 -----
acb.mpnl1=createPanel(cubefrm)
acb.mpnl1.AutoSize=false
acb.mpnl1.height=40*DP1 acb.mpnl1.width=390*DP1 acb.mpnl1.left=5*DP1 acb.mpnl1.top=5*DP1
acb.mpnl1.caption="CE Cube - Trainer Form"
acb.mpnl1.Color=8882055
acb.mpnl1.Font.Style="fsBold" acb.mpnl1.Font.Size=15*DP1
acb.mpnl1.OnMouseDown=function() cubefrm.DragNow() end
-----------------------
----------------------- acb.mbtn5 -----
acb.mbtn5=createButton(acb.mpnl1)
acb.mbtn5.AutoSize=false
acb.mbtn5.height=26*DP1 acb.mbtn5.width=26*DP1 acb.mbtn5.left=7*DP1 acb.mbtn5.top=6*DP1
acb.mbtn5.caption="-"
acb.mbtn5.Font.Style="fsBold" acb.mbtn5.Font.Size=14*DP1
-----------------------
----------------------- acb.mbtn6 -----
acb.mbtn6=createButton(acb.mpnl1)
acb.mbtn6.AutoSize=false
acb.mbtn6.height=26*DP1 acb.mbtn6.width=26*DP1 acb.mbtn6.left=356*DP1 acb.mbtn6.top=6*DP1
acb.mbtn6.caption="X"
acb.mbtn6.Font.Style="fsBold" acb.mbtn6.Font.Size=14*DP1
-----------------------
----------------------- acb.mpnl3 -----
acb.mpnl3=createPanel(cubefrm)
acb.mpnl3.AutoSize=false
acb.mpnl3.height=40*DP1 acb.mpnl3.width=390*DP1 acb.mpnl3.left=5*DP1 acb.mpnl3.top=425*DP1
acb.mpnl3.caption="AylinCE Trainers (2026)"
acb.mpnl3.Color=8882055
acb.mpnl3.Font.Style="fsBold" acb.mpnl3.Font.Size=15*DP1
-----------------------
----------------------- acb.hpnl1 -----
acb.hpnl1=createPanel(cubefrm)
acb.hpnl1.AutoSize=false
acb.hpnl1.height=338*DP1 acb.hpnl1.width=338*DP1 acb.hpnl1.left=34*DP1 acb.hpnl1.top=64*DP1
acb.hpnl1.caption="CE Cube - Trainer Form"
acb.hpnl1.Color=14330015
acb.hpnl1.Font.Style="fsBold" acb.hpnl1.Font.Size=0*DP1
-----------------------
----------------------- acb.albl5 -----
acb.albl5=createLabel(acb.hpnl1)
acb.albl5.AutoSize=false
acb.albl5.height=30*DP1 acb.albl5.width=266*DP1 acb.albl5.left=10*DP1 acb.albl5.top=10*DP1
acb.albl5.caption="About Page"
acb.albl5.alignment="taCenter"
acb.albl5.Font.Style="fsBold" acb.albl5.Font.Size=-20*DP1
-----------------------
----------------------- acb.albl1 -----
acb.albl1=createLabel(acb.hpnl1)
acb.albl1.AutoSize=false
acb.albl1.height=275*DP1 acb.albl1.width=266*DP1 acb.albl1.left=10*DP1 acb.albl1.top=50*DP1
acb.albl1.caption=""
acb.albl1.alignment="taCenter"
acb.albl1.Font.Style="fsBold" acb.albl1.Font.Size=0*DP1
-----------------------
----------------------- acb.hpnl2 -----
acb.hpnl2=createPanel(cubefrm)
acb.hpnl2.AutoSize=false
acb.hpnl2.height=338*DP1 acb.hpnl2.width=338*DP1 acb.hpnl2.left=34*DP1 acb.hpnl2.top=64*DP1
acb.hpnl2.caption=""
acb.hpnl2.Color=14330015
acb.hpnl2.Font.Style="fsBold" acb.hpnl2.Font.Size=0*DP1
-----------------------
----------------------- acb.albl2 -----
acb.albl2=createLabel(acb.hpnl2)
acb.albl2.AutoSize=false
acb.albl2.height=30*DP1 acb.albl2.width=266*DP1 acb.albl2.left=10*DP1 acb.albl2.top=10*DP1
acb.albl2.caption="SETTINGS"
acb.albl2.alignment="taCenter"
acb.albl2.Font.Style="fsBold" acb.albl2.Font.Size=-20*DP1
-----------------------
----------------------- acb.hpnl3 -----
acb.hpnl3=createPanel(cubefrm)
acb.hpnl3.AutoSize=false
acb.hpnl3.height=338*DP1 acb.hpnl3.width=338*DP1 acb.hpnl3.left=34*DP1 acb.hpnl3.top=64*DP1
acb.hpnl3.caption=""
acb.hpnl3.Color=14330015
acb.hpnl3.Font.Style="fsBold" acb.hpnl3.Font.Size=0*DP1
-----------------------
----------------------- acb.albl3 -----
acb.albl3=createLabel(acb.hpnl3)
acb.albl3.AutoSize=false
acb.albl3.height=30*DP1 acb.albl3.width=266*DP1 acb.albl3.left=10*DP1 acb.albl3.top=10*DP1
acb.albl3.caption="Hack Page 1"
acb.albl3.alignment="taCenter"
acb.albl3.Font.Style="fsBold" acb.albl3.Font.Size=-20*DP1
-----------------------
----------------------- acb.hpnl4 -----
acb.hpnl4=createPanel(cubefrm)
acb.hpnl4.AutoSize=false
acb.hpnl4.height=338*DP1 acb.hpnl4.width=338*DP1 acb.hpnl4.left=34*DP1 acb.hpnl4.top=64*DP1
acb.hpnl4.caption=""
acb.hpnl4.Color=14330015
acb.hpnl4.Font.Style="fsBold" acb.hpnl4.Font.Size=0*DP1
-----------------------
----------------------- acb.albl4 -----
acb.albl4=createLabel(acb.hpnl4)
acb.albl4.AutoSize=false
acb.albl4.height=30*DP1 acb.albl4.width=266*DP1 acb.albl4.left=10*DP1 acb.albl4.top=10*DP1
acb.albl4.caption="Hack Page 2"
acb.albl4.alignment="taCenter"
acb.albl4.Font.Style="fsBold" acb.albl4.Font.Size=-20*DP1
-----------------------
----------------------- acb.hpnl5 -----
acb.hpnl5=createPanel(cubefrm)
acb.hpnl5.AutoSize=false
acb.hpnl5.height=338*DP1 acb.hpnl5.width=338*DP1 acb.hpnl5.left=34*DP1 acb.hpnl5.top=64*DP1
acb.hpnl5.caption=""
acb.hpnl5.Color=14330015
acb.hpnl5.Font.Style="fsBold" acb.hpnl5.Font.Size=0*DP1
-----------------------
----------------------- acb.albl5 -----
acb.albl5=createLabel(acb.hpnl5)
acb.albl5.AutoSize=false
acb.albl5.height=30*DP1 acb.albl5.width=266*DP1 acb.albl5.left=10*DP1 acb.albl5.top=10*DP1
acb.albl5.caption="Hack Page 3"
acb.albl5.alignment="taCenter"
acb.albl5.Font.Style="fsBold" acb.albl5.Font.Size=-20*DP1
-----------------------
----------------------- acb.hpnl6 -----
acb.hpnl6=createPanel(cubefrm)
acb.hpnl6.AutoSize=false
acb.hpnl6.height=338*DP1 acb.hpnl6.width=338*DP1 acb.hpnl6.left=34*DP1 acb.hpnl6.top=64*DP1
acb.hpnl6.caption=""
acb.hpnl6.Color=14330015
acb.hpnl6.Font.Style="fsBold" acb.hpnl6.Font.Size=0*DP1
-----------------------
----------------------- acb.albl6 -----
acb.albl6=createLabel(acb.hpnl6)
acb.albl6.AutoSize=false
acb.albl6.height=30*DP1 acb.albl6.width=266*DP1 acb.albl6.left=10*DP1 acb.albl6.top=10*DP1
acb.albl6.caption="Hack Page 4"
acb.albl6.alignment="taCenter"
acb.albl6.Font.Style="fsBold" acb.albl6.Font.Size=-20*DP1
-----------------------
-- *********************************************************
-- Functions
-- *********************************************************
-- DPI Scaling Factor (96 is standard DPI)
local DPI_SCALE = getScreenDPI() / 96
-- Form & Asset References
local myForm = cubefrm
local vsblPnl = acb.hpnl1
local img = acb.cbimg
-- State Variables
local curX, tarX = 90, 90 -- Starting at 90 (About Face)
local curY, tarY = 0, 0
local projected1 = {}
local faceName = nil
-- Global Visibility Control: Hides all panels and applies Drag functionality
function pnlVsbl()
for i=1, 6 do
local pnl = acb["hpnl"..i]
local lbl = acb["albl"..i]
pnl.Visible = false
-- Enable dragging the form from the panels or labels
pnl.OnMouseDown = function() myForm.DragNow() end
lbl.OnMouseDown = function() myForm.DragNow() end
end
end
-- Initialize UI State
pnlVsbl()
img.Picture.Bitmap = createBitmap(img.Width, img.Height)
-- Face Definitions with IDs and Colors
-- id=1: About, id=2: Settings, id=3-6: Hacks
local faces = {
{1, 2, 3, 4, 0x0000FF, id=3}, -- FRONT (Blue - Hack 1)
{5, 6, 7, 8, 0x00FF00, id=5}, -- BACK (Green - Hack 3)
{1, 5, 8, 4, 0xFFFF00, id=6}, -- LEFT (Yellow - Hack 4)
{2, 6, 7, 3, 0x00FFFF, id=4}, -- RIGHT (Cyan - Hack 2)
{4, 8, 7, 3, 0xFF00FF, id=2}, -- TOP (Magenta - Settings)
{1, 5, 6, 2, 0xFFFFFF, id=1} -- BOTTOM (White - About)
}
-- 3D Rendering Core (DPI Aware)
local function drawCube()
local canvas = img.Picture.Bitmap.Canvas
canvas.Brush.Color = myForm.Color
canvas.fillRect(0, 0, img.Width, img.Height)
local projected = {}
local faceData = {}
local centerX = img.Width / 2
local centerY = img.Height / 2
local perspective = (img.Width * DPI_SCALE) * cubeScale
for i, v in ipairs(vertices) do
local x, y, z = v[1], v[2], v[3]
-- Rotation Matrices
local radY = math.rad(curY)
local rx = x * math.cos(radY) - z * math.sin(radY)
local rz = x * math.sin(radY) + z * math.cos(radY)
local radX = math.rad(curX)
local ry = y * math.cos(radX) - rz * math.sin(radX)
local finalZ = y * math.sin(radX) + rz * math.cos(radX)
-- Projection Calculation with Scale
local factor = perspective / (finalZ + (img.Width * cubeScale))
projected[i] = {
x = rx * factor + centerX,
y = ry * factor + centerY,
z = finalZ
}
end
projected1 = projected -- Export for global access
-- Z-Sorting for correct face layering
for i, f in ipairs(faces) do
local avgZ = (projected[f[1]].z + projected[f[2]].z + projected[f[3]].z + projected[f[4]].z) / 4
table.insert(faceData, {indices = f, z = avgZ, color = f[5]})
end
table.sort(faceData, function(a, b) return a.z > b.z end)
-- Draw polygons to Canvas
for _, f in ipairs(faceData) do
local p = f.indices
myFillPolygon(canvas, {
{x=projected[p[1]].x, y=projected[p[1]].y}, {x=projected[p[2]].x, y=projected[p[2]].y},
{x=projected[p[3]].x, y=projected[p[3]].y}, {x=projected[p[4]].x, y=projected[p[4]].y}
}, f.color)
end
img.repaint()
end
-- Identify the face closest to the camera (Z-Depth Based)
local function getVisibleFaceID()
local bestZ = 999999
local visibleID = 1
for i, f in ipairs(faces) do
local avgZ = (projected1[f[1]].z + projected1[f[2]].z + projected1[f[3]].z + projected1[f[4]].z) / 4
if avgZ < bestZ then
bestZ = avgZ
visibleID = f.id
end
end
return visibleID
end
-- Animation Engine Timer
if animTimer then animTimer.Destroy() animTimer=nil end
animTimer = createTimer()
animTimer.Enabled, animTimer.Interval = false, 20
animTimer.OnTimer = function()
local diffX = tarX - curX
local diffY = tarY - curY
-- Smooth Easing Animation (20% approach per frame)
if math.abs(diffX) > 0.5 then curX = curX + (diffX * 0.2) else curX = tarX end
if math.abs(diffY) > 0.5 then curY = curY + (diffY * 0.2) else curY = tarY end
-- On Animation End
if curX == tarX and curY == tarY then
animTimer.Enabled = false
-- Prevent number overflow
curX, tarX = curX % 360, tarX % 360
curY, tarY = curY % 360, tarY % 360
local finalID = getVisibleFaceID()
if acb["hpnl"..finalID] then
pnlVsbl()
acb["hpnl"..finalID].Visible = true
faceName = acb["hpnl"..finalID]
end
end
drawCube()
end
-- Dynamic Face Position Calculator (DPI and Scale Aware)
local function getFrontFaceRect(targetImg)
if not targetImg or not targetImg.Width then return nil end
local centerX = targetImg.Width / 2
local centerY = targetImg.Height / 2
local perspectiveBase = targetImg.Width * 1.125
local distanceBase = targetImg.Width * 1.0
local perspective = perspectiveBase * cubeScale
local distance = distanceBase * cubeScale
local dynamicFactor = perspective / ((-size) + distance)
-- Applying DPI scaling to offsets (18 and 19 converted to scaled values)
local padding = 18 * DPI_SCALE
local offset = 19 * DPI_SCALE
local displaySize = math.floor((size * 2) * dynamicFactor) - padding
return {
left = math.floor(centerX - (displaySize / 2) + targetImg.Left + offset - 20),
top = math.floor(centerY - (displaySize / 2) + targetImg.Top + offset - 20),
width = displaySize - (padding * 2) + 40,
height = displaySize - (padding * 2) + 40
}
end
-- Setup initial panel positions
local r = getFrontFaceRect(img)
if r then
for i=1, 6 do
acb["hpnl"..i].setSize(r.width, r.height)
acb["hpnl"..i].setPosition(r.left, r.top)
end
end
-- Initial render
drawCube()
vsblPnl.Visible = true
-- Keyboard Input Timer (Global Key Listener)
if kyTimer then kyTimer.Destroy() kyTimer=nil end
kyTimer = createTimer()
kyTimer.Enabled, kyTimer.Interval = true, 100
local function isFormActive()
return getForegroundWindow() == myForm.Handle
end
kyTimer.OnTimer = function()
if animTimer.Enabled or not isFormActive() then return end
-- Navigation via Arrow Keys
local move = false
if isKeyPressed(VK_LEFT) then tarY = tarY + 90 move = true
elseif isKeyPressed(VK_RIGHT) then tarY = tarY - 90 move = true
elseif isKeyPressed(VK_UP) then tarX = tarX - 90 move = true
elseif isKeyPressed(VK_DOWN) then tarX = tarX + 90 move = true end
if move then
pnlVsbl()
animTimer.Enabled = true
end
end
acb.mbtn5.OnClick=function() myForm.WindowState="wsMinimized" end
acb.mbtn6.OnClick=function()
myForm.close()
--closeCE()
--return caFree
end |
Enjoy using them.
Technical Specifications & Keywords
- Project Name: AylinCE 3D Engine Core
- Programming Language: Lua (Cheat Engine Environment)
- Rendering Type: Software-based 3D Wireframe & Polygon Filling
- Compatibility: DPI-Aware, Scalable UI Systems
- Features: Z-Depth Depth Sorting, Smooth Easing Animation, Multi-Panel Navigation
- Search Terms: Cheat Engine 3D UI, Lua Cube Rotation, CE Trainer Interface Design
| Description: |
|
| Filesize: |
9.54 KB |
| Viewed: |
743 Time(s) |
|
_________________
|
|
FAQ
Search
Memberlist
Usergroups
Register
Profile
Log in to check your private messages
Log in
