 Posted: Mon Sep 21, 2020 7:59 pm Post subject: Drawing using mouse |
 |
|
How to draw (i.e:rectangle) using mouse, to make selection area?.
I try (followed FP method):
| Code: | if f then f.destroy() end
f = createForm()
f.Position = 'poScreenCenter'
f.setSize(600, 600)
--img = createImage(f)
--img.setPosition(10,10)
--img.setSize(500,500)
--img.Picture.loadFromStream(findTableFile('myimage.jpg').stream)
--img.AutoSize = true
local md = false
local p1 = {}
p1.x = 0
p1.y = 0
local p2 = {}
p2.x = 0
p2.y = 0
local r = {}
r.Left = 0
r.Top = 0
r.Right = 0
r.Bottom = 0
local selrect = {}
selrect.Left = 0
selrect.Top = 0
selrect.Right = 0
selrect.Bottom = 0
f.OnMouseDown = function(sender, button, x, y)
if selrect.Left ~= 0 then
sender.Canvas.Brush.Color = 0xff
sender.Canvas.Pen.Color = 0xff
--sender.Canvas.Pen.Mode = 'pmMask'
--sender.Canvas.DrawFocusRect(selrect)
sender.Canvas.Rect(selrect)
selrect.Left = 0
selrect.Top = 0
selrect.Right = 0
selrect.Bottom = 0
end
p1.x = x
p1.y = y
md = true
end
f.OnMouseMove = function(sender, button, x, y)
if not md then return end
r.Top = p1.y
r.Left = p1.x
r.Right = p2.x
r.Bottom = p2.y
--img.Canvas.pen.Mode = 'pmMask'
sender.Canvas.Brush.Color = 0xff
sender.Canvas.Pen.Color = 0xff
if (p1.x ~= 0) and (p2.x ~= 0) then
if (p2.x > p1.x) then
--sender.Canvas.DrawFocusRect(r)
sender.Canvas.Rect(r)
else
--sender.Canvas.DrawFocusRect(Rect(p2.x, p2.y, p1.x, p1.y))
sender.Canvas.Rect(p2.x, p2.y, p1.x, p1.y)
p2.x = x
p2.y = y
r.Top = p1.y
r.Left = p1.x
r.Right = p2.x
r.Bottom = p2.y
--sender.Canvas.Pen.Mode = 'pmCopy'
if (p1.x ~=0) and (p2.x ~=0) then
if (p2.x > p1.x) then
--sender.Canvas.DrawFocusRect(r)
sender.Canvas.Rect(r)
else
--sender.Canvas.DrawFocusRect(Rect(p2.x, p2.y, p1.x, p1.y))
sender.Canvas.Rect(p2.x, p2.y, p1.x, p1.y)
end
end
end
end
end
f.OnMouseUp = function(sender, button, x, y)
r.Top = p1.y
r.Left = p1.x
r.Right = p2.x
r.Bottom = p2.y
--img.Canvas.Pen.Mode = 'pmMask'
sender.Canvas.Brush.Color = 0xff
sender.Canvas.Pen.Color = 0xff
if (p1.x ~= 0) and (p2.x ~= 0)then
if (p2.x > p1.x) then
--sender.Canvas.DrawFocusRect(r)
sender.Canvas.Rect(r)
else
--sender.Canvas.DrawFocusRect(Rect(p2.x, p2.y, p1.x, p1.y))
sender.Canvas.Rect(p2.x, p2.y, p1.x, p1.y)
end
if p1.x < p2.x then
selrect.Left = p1.x
selrect.Top = p1.y
selrect.Right = p2.x
selrect.Bottom = p2.y
else
selrect.Left = p2.x
selrect.Top = p2.y
selrect.Right = p1.x
selrect.Bottom = p1.y
end
md = false
p1.x = 0
p1.y = 0
p2.x = 0
p2.y = 0
end
end
f.show()
|
Doesn't get effect anything.
_________________
Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL |
|
| Back to top |
|
 |
.lua
Expert Cheater
 Reputation: 1
Joined: 13 Sep 2018
Posts: 202
|
| Posted: Tue Sep 22, 2020 5:30 am Post subject: |
 |
|
You need to solve several problems:
First: we should record the coordinate point when the mouse clicks (as the origin coordinate), and draw the area horizontally and vertically with this coordinate point
Second: the brush color should follow the area being drawn, not the entire canvas
| Code: | if f then f.Destroy() end
f=createForm()
f.Color=0x00ff00
f.setSize(300,300)
--f.OnMouseDown=function(p) f.dragNow() end
local down=1
f.OnMouseDown=function()
down=0
end
f.OnMouseUp=function()
down=1
end
f.OnMouseMove=function()
local x,y=f.ScreenToClient(getMousePos())
if down==0 then
f.caption=x..' '..y
f.Canvas.Clear()
f.Canvas.Pen.Width=1
f.Canvas.Brush.Color=0x00ffff
f.Canvas.roundRect(f.width-x, f.height-y, x, y, 16, 16)
end
end
f.setLayeredAttributes(0x0000ff,220,3,3) |
|
|
| Back to top |
|
|
Corroder
Grandmaster Cheater Supreme
Reputation: 75
Joined: 10 Apr 2015
Posts: 1668
|
| Posted: Tue Sep 22, 2020 5:58 am Post subject: |
|
|
Thanks, that it is. So, use ScreenToClient() more easier.
I made little edit on your script, so now the selection will start from where is first mouse down click.
| Code: | if f then f.Destroy() end
f=createForm()
f.setSize(300,300)
local down=1
local startX, startY
f.OnMouseDown=function()
x,y = f.ScreenToClient(getMousePos())
startX = x
startY = y
down=0
end
f.OnMouseUp=function()
down=1
end
f.OnMouseMove=function()
local x,y=f.ScreenToClient(getMousePos())
if down==0 then
f.caption=x..' '..y
f.Canvas.Clear()
f.Canvas.Pen.Color = 0xff
f.Canvas.Pen.Width = 1
f.Canvas.Brush.Color = f.color
f.Canvas.Brush.Style = 0
f.Canvas.rect(startX, startY, x, y)
end
end
|
PS: I need this to complete my cropping tool using CE Lua
_________________
Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL |
|
| Back to top |
|
|
.lua
Expert Cheater
Reputation: 1
Joined: 13 Sep 2018
Posts: 202
|
| Posted: Tue Sep 22, 2020 6:30 am Post subject: |
|
|
I think you should also feel that when you draw, there is a flicker.
I guess you want to do some screenshots.
Sometimes you coincide with me.
However, in terms of programming technology, I am certainly not as good as you.
|
|
| Back to top |
|
|
Oxijen
Expert Cheater
![]() Reputation: 0
Joined: 07 May 2020
Posts: 163
Location: On The Moon
|
| Posted: Tue Sep 22, 2020 7:28 am Post subject: |
|
|
I knew it is corrder just when I read the title
|
|
| Back to top |
|
|
Corroder
Grandmaster Cheater Supreme
Reputation: 75
Joined: 10 Apr 2015
Posts: 1668
|
| Posted: Tue Sep 22, 2020 8:27 am Post subject: |
|
|
| .lua wrote: | I think you should also feel that when you draw, there is a flicker.
I guess you want to do some screenshots.
Sometimes you coincide with me.
However, in terms of programming technology, I am certainly not as good as you. |
I want to test and try to make a paint tool / image editor, using pure CE Lua script, which combining some logic from other apps. (mainly is Lazarus/Delphi).
Some abilities are : resize, crop by percent, crop by selection (both mouse event or typed coordinates), color handler (sephia, grayscale, monochrome, etc), flips, etc if possible. Just to completely my CE Lua script / tools / apps.
I am not good at all, with my limited programming skill, which I got just from read from google, ebooks or tutorial, I don't have learn basic programming at all.
Just read and at least try to understand, the practice.
When draw only one or two shape, the flicker matter is not appear, except we draw over than 10 or 20 shapes. And we already made a limited to draw just one shape at a time with clear the canvas.
That I know, if want draws much more shapes, then use memory buffers to store the shapes and call it by assign to the controls when needed. This is to avoid flickers matter.
_________________
Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL |
|
| Back to top |
|
|
.lua
Expert Cheater
Reputation: 1
Joined: 13 Sep 2018
Posts: 202
|
| Posted: Tue Sep 22, 2020 9:11 pm Post subject: |
|
|
| I just started to study on the way, and I only have spare time. Maybe the only thing I can do now is to be more serious
|
|
| Back to top |
|
|
Corroder
Grandmaster Cheater Supreme
Reputation: 75
Joined: 10 Apr 2015
Posts: 1668
|
|
| Back to top |
|
|
Corroder
Grandmaster Cheater Supreme
Reputation: 75
Joined: 10 Apr 2015
Posts: 1668
|
| Posted: Wed Sep 23, 2020 9:10 am Post subject: |
|
|

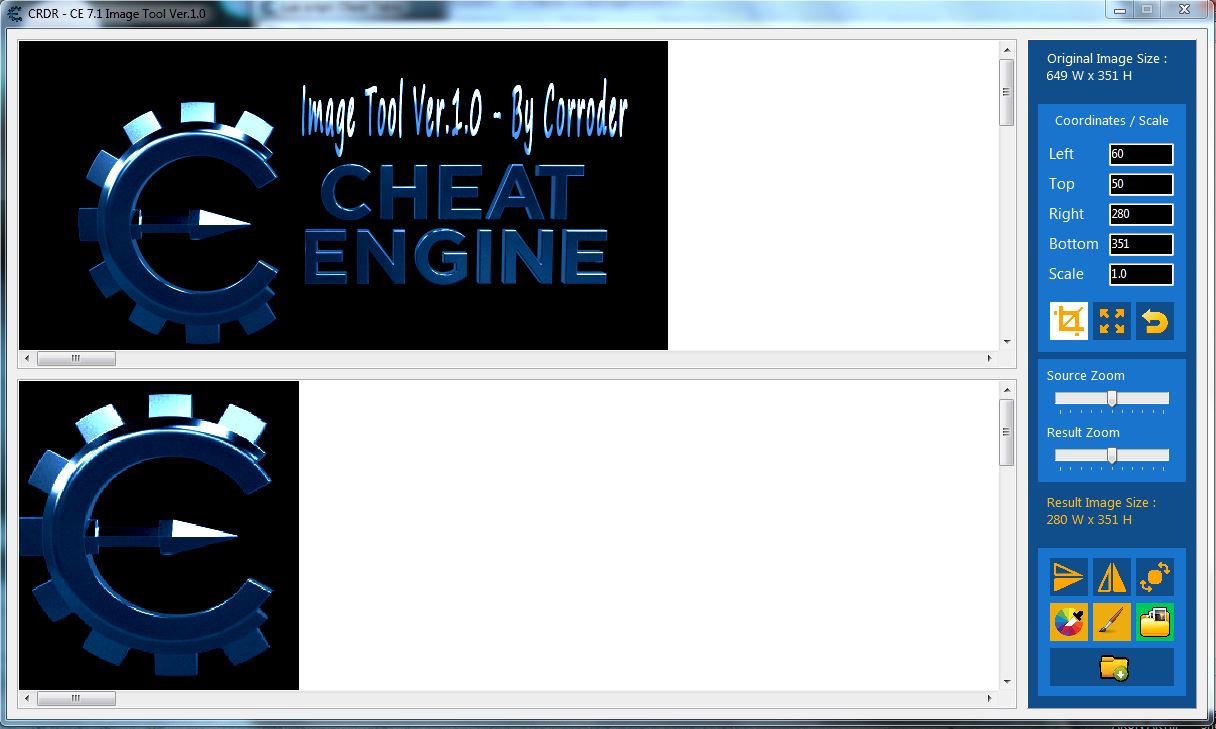

What I am trying to do is something like this.
| Description: |
|
| Filesize: |
113.18 KB |
| Viewed: |
3234 Time(s) |
|
